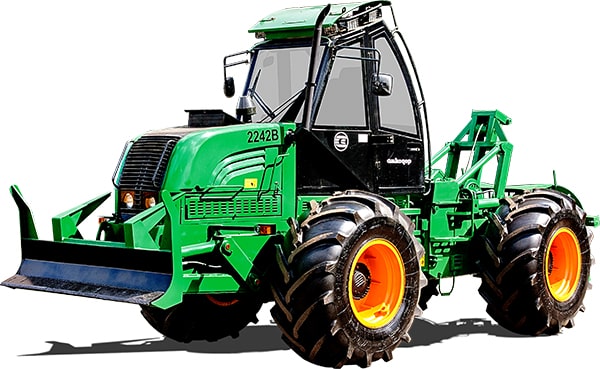

Skidding Machine AMKODOR 2242B
| ENGINE | |
|---|---|
| Model | D-260.1S2 |
| Manufacturer | Minsk Motor Plant |
| Rated power, kW (hp) | 116 (155) |
| TRANSMISSION | |
|---|---|
| Type | Hydromechanical |
| Wheel formula | 4х4 |
| Number of gears, forward / backward | 4/2 |
| Max. travel speed, km/h: | |
| - 1 range (1 gear) | 6.5 |
| - 2 range (4 gear) | 30 |
| Traction force on 1st gear, kN | 128 |
| Tires | 30.5L-32 LS |
| HYDRAULIC SYSTEM |
|---|
| Hydraulic system of working attachments: 1-pump, Loadsensing, with an adjustable pump and hydraulic valves with electro-hydraulic control Swing system: articulated frame, hydraulically driven Service brakes: multi-disc brakes in oil, with separate hydraulic drive on axles Parking brake system: oil-immersed multi-disc brakes with hydraulic release |
| OVERALL AND WEIGHT SPECIFICATIONS | |
|---|---|
| Length in transport position, mm | 7300 |
| Width, mm | 2875 |
| Cabin roof height, mm | 3700 |
| Track, mm | 2100 |
| Base, mm | 3515 |
| Clearance, mm | 550 |
| Operating weight, kg | 12500 |
| WINCH | |
|---|---|
| Type | Single drum reversible |
| Traction force on the first turn, kg | 6000 |
| Rotation speed, m/min | 45 |
| Rope capacity, m | 50 |
| Drag scope, m3 | up to 10 |
| BLADE | |
|---|---|
| Bucket lip width, mm | 2200 |
| Lift height, mm | 1200 |
| CABIN | |
|---|---|
| Type | Integral, with hydraulic lift |
| ROPS/FOPS/OPS | Integrated |
| Air conditioning | Integrated |
Forest machines Division
AMKODOR 2242B
DESIGNATION
Skidding machine AMKODOR 2242B is designed for skidding trees and tree-length wood, as well as for auxiliary work in the felling area: preparing loading areas, stacking tree-length wood, leveling butt ends.
AMKODOR Holding retains the right to change the technical characteristics and design of the machine presented in this prospectus without prior notice.
