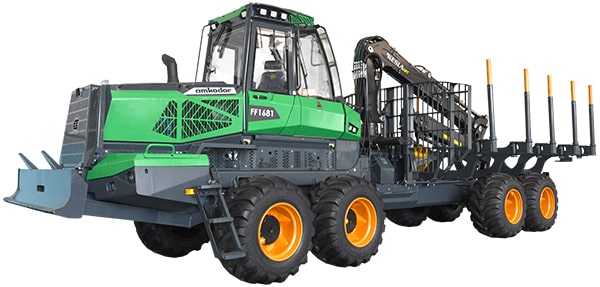

Forwarder AMKODOR FF1681

ENGINE
Model YaMZ-536 with electronic control
Manufacturer Yaroslavl Motor Plant
Rated power, kW (hp) 225 (306)
TRANSMISSION
Wheel formula 8х8
Type Hydrostatic
Number of ranges, forward / backward 2/2
Max. travel speed, km/h:
- operating (1 range ) 8
- transport (4 range ) 22
TIRES
Front 700/50-26.0 or 800/40-26.5
Rear 700/50-26.0 or 800/40-26.5
AXLES
Front:
Type Balance lead axle 4х4
Manufacturer NAF
Differential 100% lock
Rear:
Type Balance lead axle 4х4
Manufacturer NAF
Differential 100% lock
SWING SYSTEM
Type Articulated frame
Folding angle of the articulated frame, deg. ±44
STEERING SYSTEM
Type Hydrostatic and electrohydraulic
MANIPULATOR
Model KESLA 14F / KESLA 14FT
Manufacturer KESLA (Finland)
Manipulator boom reach, mm 8200 / 10070
Lifting moment (gross), kNm 180
Carrying capacity at max. reach, kg 1150 / 1160
Swing angle in the horizontal plane, degrees 380
CLAMSHELL
Model ProG40
Manufacturer KESLA (Finland)
Wood grapple diameter, mm 140...1055
Grapple area, m2 0.4
FILLING TANKS
Fuel tank, l 300
Hydraulic tank, l 200
OVERALL AND WEIGHT SPECIFICATIONS
Carrying capacity, kg 16000
Length in transport position, mm 12085
Width, mm 3000
Height, mm 3830
Manipulator height, mm 4000
Cargo compartment length, mm 5500
Cargo compartment area, m2 4.8-5.6
Operating weight, kg 22000

“Forest machines” division

AMKODOR FF1681

BASIC EQUIPMENT

Engine unit

  • Russian-made engine
  • device for starting the engine at subzero temperatures (coolant heater)
  • heating of the fuel intake line
  • pneumatic compressor with receiver
  • manual engine speed control (scroll)
  • availability of a removable protective mesh on the engine hood

Transmission

  • hydrostatic transmission with electronic control
  • forced differential lock (front and rear axles)
  • rear axle disconnection system
  • electro-hydraulic parking brake
  • automatic wheel lock system when activating working attachment
  • lower power transmission protection

Hydraulic system

  • a mechanism that minimizes the loss of working fluid when the High Pressure Hoses breaks
  • working fluid cooling system
  • emergency shutdown system of technological equipment
  • working attachments pump and distributor with electric control
  • the system of blocking the half-frame with active working equipment
  • hydraulic system for lifting and lowering the cab

Electrical system

  • electronic monitoring and diagnostics system
  • emergency mass shutdown button
  • searchlight on the manipulator boom
  • indicator of the drop in the level of the working fluid in the hydraulic tank
  • headlamps and turn indicators
  • reverse sound signal
  • 360° work area lighting system
  • protection of lighting devices

Cabin

  • the cabin of increased comfort
  • the high-comfort swing seat with a high backrest on a mechanical suspension
  • adjustable seat armrests and joystick positions
  • heated rear view mirrors (outside the cabin)
  • radio with USB output
  • polycarbonate glasses with double-sided anti-abrasive protection
  • a set of sun blinds on all windows
  • 12V power socket
  • cabin air conditioning and ventilation system
  • electronic climate control
  • additional drawers for the driver’s personal belongings
  • food storage compartment with cooling
  • fire extinguisher

Other

  • semi-automatic joint lubrication system
  • electric pump for filling the working fluid
  • electric fuel filling pump
  • availability of compartments for storing tools and accessories during operation of the machine
  • paintwork with improved consumer properties electric drive for raising/lowering the engine hood

ADDITIONAL EQUIPMENT

Engine unit

  • automatic and/or forced fire extinguishing system
  • fuel consumption monitoring system
  • dehumidifier filter

Transmission

  • swing locking system for front and rear balancing axles

Hydraulic system

  • working fluid heating system

Electrical system

  • rear view camera
  • electronic indication of filter blockage

Cabin

  • a high-comfort seat with a high backrest on a pneumatic suspension
  • seat heating
  • sun blinds made of foil material

Other

  • manipulator with extended reach
  • hydraulic winch
  • cargo compartment extension (length with extension 5500 mm)
  • cargo compartment expanders (area with expanders 5.6 м2)
  • blade (cutting edge width 2200 mm)
  • the system of longitudinal hydraulic movement of the cargo shield
  • protective hood grille
  • GLONASS and GPS systems
  • remote data transmission system (USAIS)
  • automatic centralized lubrication system
  • tires 800/40-26.5
  • tire pressure sensor
  • snow chains and tracks
  • a set of tools
  • cables-bumpers
Play Video

AMKODOR Holding retains the right to change the technical characteristics and design of the machine presented in this prospectus without prior notice.
