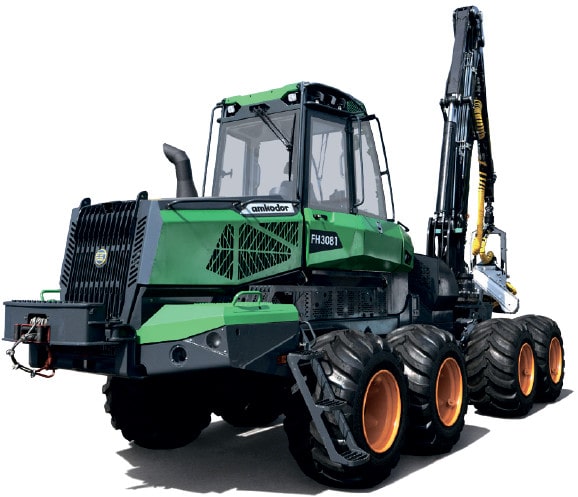

Harvester AMKODOR FН3081
| ENGINE | |
|---|---|
| Model | YaMZ-536 with electronic control |
| Manufacturer | Yaroslavl Motor Plant (RF) |
| Rated power, kW (hp) | 243 (330) |
| TRANSMISSION | |
|---|---|
| Type | Hydrostatic |
| Wheel formula | 8х8 |
| Number of ranges, forward / backward | 2/2 |
| Max. travel speed, km/h: | |
| - 1 range | 8 |
| - 2 range | 22 |
| Front Axle | Balance Lead 30T |
| Manufacturer | AMKODOR (Belarus) |
| Rear Axle | Balance Lead 30T |
| Manufacturer | AMKODOR (Belarus) |
| Differential | 100% lock |
| Tires | 700/50-26.5 или 800/40-26.5 |
| HYDRAULIC SYSTEM |
|---|
| Hydraulic system of working attachments: 2-pump, Loadsensing, with adjustable pumps and electro-hydraulic control valves Swing system: articulated frame, hydraulically driven Service brakes: multi-disc brakes in oil, with separate hydraulic drive on axles Parking brake system: oil-immersed multi-disc brakes with hydraulic release |
| MANIPULATOR | |
|---|---|
| Model | AMKODOR KH20010/KH24010 |
| Manufacturer | AMKODOR (Belarus) |
| Manipulator boom reach, mm | 10000 |
| Load moment (gross), kNm | 250 |
| Carrying capacity at max. reach, kg | 1540 |
| HARVESTER HEAD | |
|---|---|
| Model | AMKODOR HH720 |
| Manufacturer | AMKODOR (Belarus) |
| Optimum diameter of cut wood, mm | 470 |
| Max. cut tree diameter, mm | 720 |
| Max. roller opening, mm | 630 |
| CABIN | |
|---|---|
| Type | Integral, with hydraulic lift |
| ROPS/FOPS/OPS | Integrated |
| Air conditioning | Integrated |
| OVERALL AND WEIGHT SPECIFICATIONS | |
|---|---|
| Length in transport position, mm | 13266 |
| Wheel width, mm | 3000 |
| Cabin roof height, mm | 3830 |
| Manipulator height, mm | 4000 |
| Operating weight, kg | 26500 |
Forest machines Division
AMKODOR FН3081
DESIGNATION
Harvester AMKODOR FН3081 is a heavy off-road vehicle designed for felling trees, delimbing and crosscutting tree-lengths into cuts of a predetermined length when clear cuttings. It has high performance.
AMKODOR Holding retains the right to change the technical characteristics and design of the machine presented in this prospectus without prior notice.
