Hydraulic system of working attachments: 1-pump, Loadsensing, with an adjustable pump and a control valve with electro-hydraulic control
Swing system: articulated frame, hydraulically driven
Service brakes: multi-disc brakes in oil, with separate hydraulic drive on axles Parking brake system: oil-immersed multi-disc brakes with hydraulic release
MANIPULATOR
Model
KESLA 304
Manufacturer
KESLA (Finland)
Departure of an arrow of the manipulator, mm
6900
Lifting moment (gross), kNm
56
Carrying capacity at max. reach, kg
620
Coverage area, m2
0.24
CABIN
Type
Integral, with hydraulic lift
ROPS/FOPS/OPS
Integrated
Air conditioning
Integrated
OVERALL AND WEIGHT SPECIFICATIONS
Carrying capacity, kg
9000
Length in transport position, mm
9360
Width, mm
2400
Height, mm
3620
Track, mm
1710
Base, mm
5550
Clearance, mm
470
Cross-sectional area of cargo compartment, m2
2.4
Cargo compartment length, mm
4400
Operating weight, kg
13400
Forest machines Division

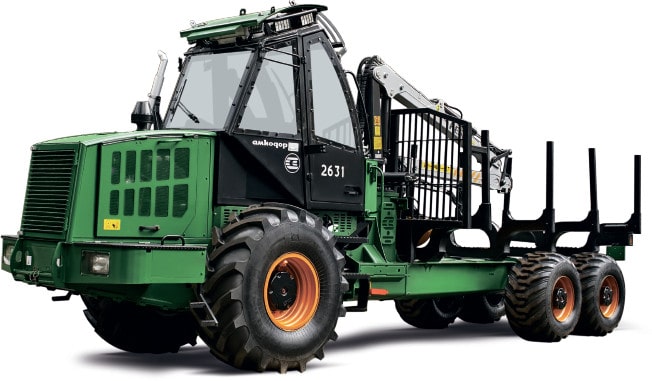

AMKODOR 2631
DESIGNATION
Forwarder AMKODOR 2631 is designed for collecting, loading and transporting assortments and other round timber along the territory of cutting areas, skid roads and logging roads. It is used for thinning.
