Log Loader AMKODOR FL70H
| ENGINE | |
|---|---|
| Model | YaMZ-536 (stage 3A) |
| Manufacturer | Yaroslavl Motor Plant (RF) |
| Rated power, kW (hp) | 184 (250) |
| CABIN | |
|---|---|
| ROPS/FOPS/OPS | ROPS/FOPS/OPS Integrated |
| OVERALL AND WEIGHT SPECIFICATIONS | |
|---|---|
| Rated carrying capacity, kg | 7000 |
| MAXIMUM DUMP HEIGHT OF THE GRIPPER, MM: | |
| - with the horizontal position of the grapple paws | 4000 |
| - at dump angle of 20° | 3840 |
| - at dump angle of 45° | 3280 |
| Reach with the horizontal position of the grapple paws at the maximum dump height, mm, minimum | 1950 |
| Environmental safety level (according to the technical specifications for the engine or the engine approval protocol) | IIIА |
| MAXIMUM TRAVEL SPEED, KM/H: | |
| -work | 6 |
| -transport | 35 |
| Length in transport position, mm | 8650 |
| Width (over wheels), mm | 2880 |
| Height (over cabin roof), mm | 3870 |
| Operating weight, kg | 23000 |
Forest machines Division

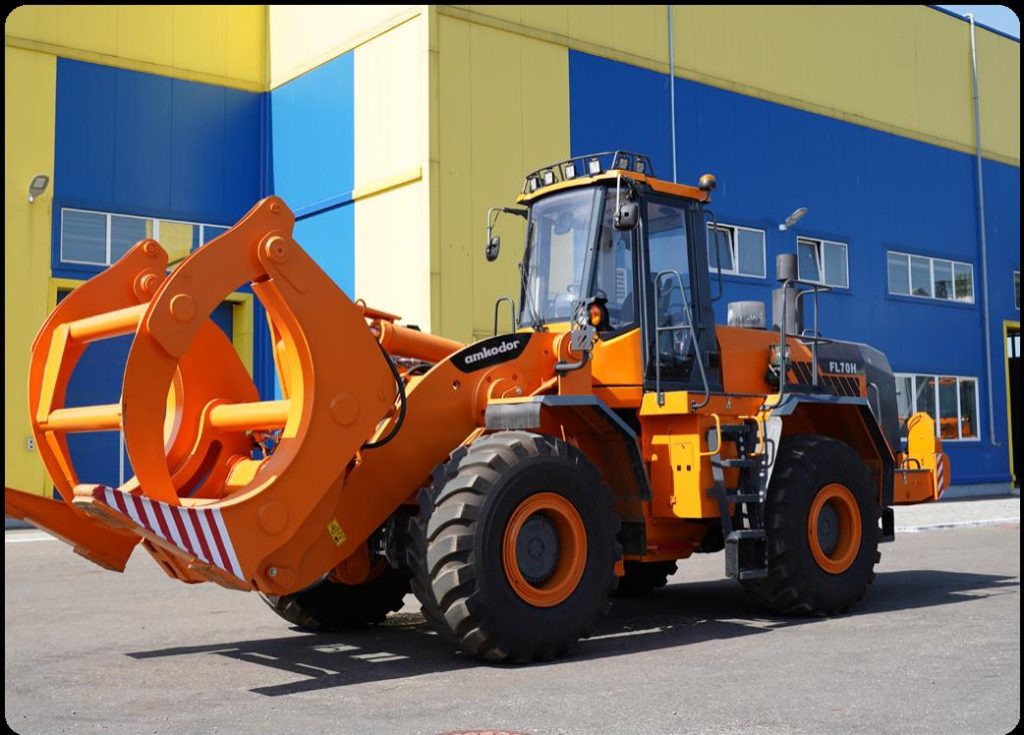

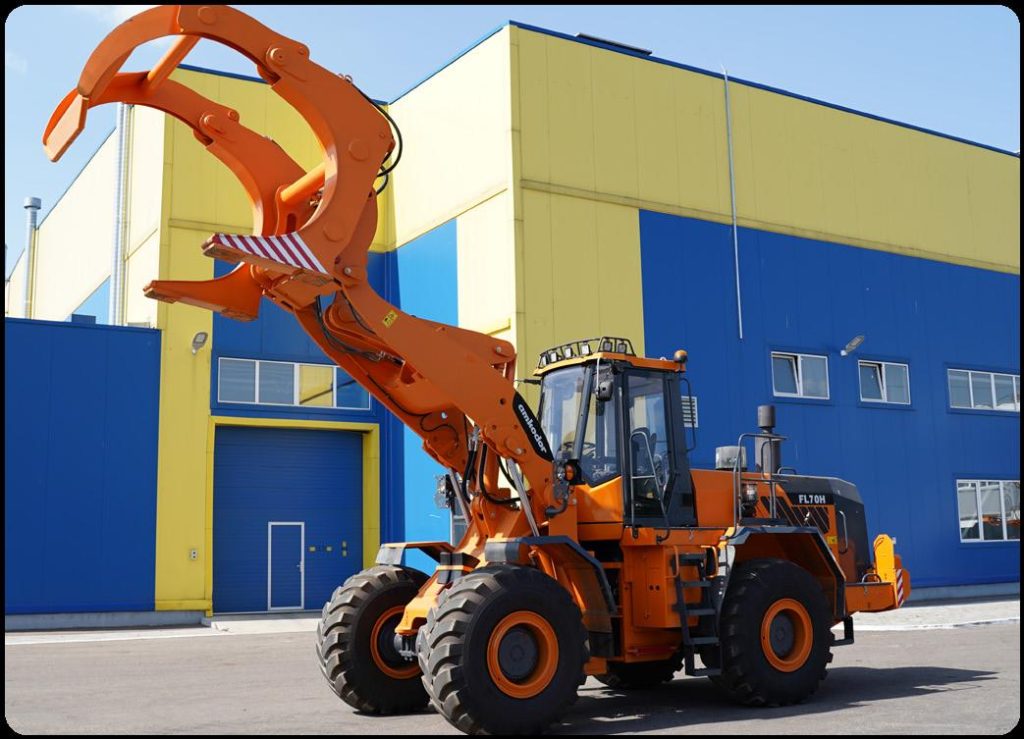

Log Loader AMKODOR FL70H
DESIGNATION
Log loader AMKODOR FL70H is designed for loading round timber at the warehouses of logging organizations and sites of timber processing enterprises into vehicles and stacks, as well as unloading logging vehicles and disassembling stacks. When installing quick-shift working attachments on a log loader, mechanization of handing works with bulk, lump, long-length materials is provided, earthmoving and transport works are carried out on soils of category I – III without preliminary ripping and on soils of category IV after preliminary ripping, installation and rigging works are also carried out.
AMKODOR Holding retains the right to change the technical characteristics and design of the machine presented in this prospectus without prior notice.
