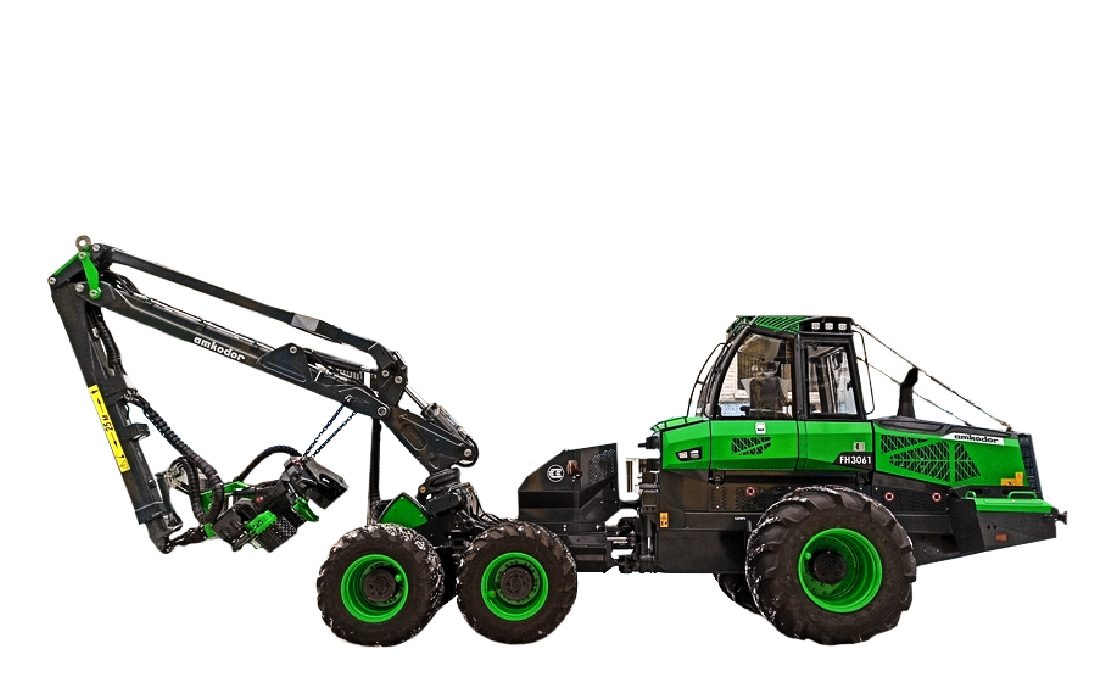

Harvester AMKODOR FН3061
| ENGINE | |
|---|---|
| Model | YaMZ-536 with electronic control |
| Manufacturer | Yaroslavl Motor Plant (RF) |
| Rated power, kW (hp) | 243 (330) |
| TRANSMISSION | |
|---|---|
| Type | Hydrostatic |
| Wheel formula | 6х6 |
| Number of ranges, forward/backward | 2/2 |
| Max. travel speed, km/h: | |
| -1 range | 8 |
| -2 range | 22 |
| Front axle | Balance lead 30T |
| Manufacturer | AMKODOR |
| Rear axle | Lead non-steering 2662 |
| Manufacturer | AMKODOR |
| Differential | 100% lock |
| Front tires | 30.5L-32LS |
| Rear tires | 700/50-26.5 |
| HYDRAULIC SYSTEM | |
|---|---|
| Hydraulic system of working attachments: | 2-pump, Load-sensing, with adjustable pumps and electro-hydraulic control valves |
| Swing system: | articulated frame, hydraulically driven |
| Service brakes: | multi-disc brakes in oil, with separate hydraulic drive on axles |
| Parking brake system: | oil-immersed multi-disc brakes with hydraulic release |
| MANIPULATOR | |
|---|---|
| Model | AMKODOR КН20010/КН21010 |
| Manufacturer | AMKODOR (Belarus) |
| Manipulator boom reach, mm | 10000 |
| Load moment (gross), kNm | 200 |
| Carrying capacity at max. reach, kg | 1200 |
| HARVESTER HEAD | |
|---|---|
| Model | AMKODOR HH630 |
| Manufacturer | AMKODOR (Belarus) |
| Optimum diameter of cut wood, mm | 380 |
| Max. cut tree diameter, mm | 630 |
| Max. opening of rollers, mm | 582 |
| CABIN | |
|---|---|
| Type | Integral, with hydraulic lift |
| ROPS/FOPS/OPS | Integrated |
| Air conditioning | Integrated |
| OVERALL AND WEIGHT SPECIFICATIONS | |
|---|---|
| Length in transport position, mm | 13266 |
| Wheel width, mm | 3000 |
| Cabin roof height, mm | 3830 |
| Manipulator height, mm | 4000 |
| Operating weight, kg | 24500 |
Forest machines Division
Harvester AMKODOR FН3061
DESIGNATION
Harvester AMKODOR FH3061 is a heavy off-road vehicle designed for felling trees, delimbing and crosscutting tree-lengths into cuts of a predetermined length when clear cuttings. It has high performance.
AMKODOR Holding retains the right to change the technical characteristics and design of the machine presented in this prospectus without prior notice.
