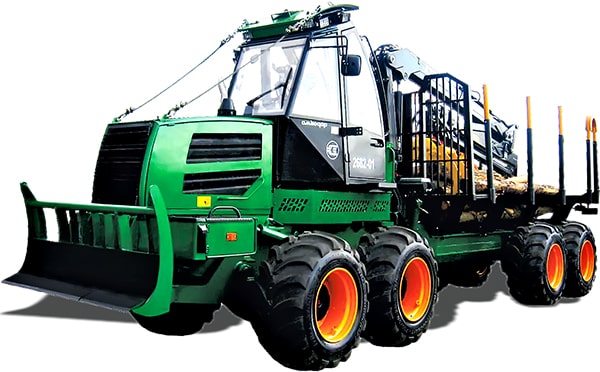

Forwarder AMKODOR 2682-01
| ENGINE | |
|---|---|
| Model | D-260.9S2 |
| Manufacturer | Minsk Motor Plant |
| Rated power, kW (hp) | 132 (180) |
| TRANSMISSION | |
|---|---|
| Type | Hydromechanical |
| Wheel formula | 8х8 |
| Number of gears, forward / backward | 4/2 |
| Max. travel speed, km/h: | |
| - 1 range (1 gear) | 4.5 |
| - 2 range (4 gear) | 26.5 |
| Front Axle | Balance Lead |
| Manufacturer | NAF (Germany) |
| Rear Axle | Balance Lead |
| Manufacturer | NAF (Germany) |
| Differential | 100% lock |
| Tires | 700/50-26.0 |
| HYDRAULIC SYSTEM |
|---|
| Hydraulic system of working attachment: 1-pump, Loadsensing, with an adjustable pump and a control valve with electro-hydraulic control Swing system: articulated frame, hydraulically actuated with hydraulic feedback Service brakes: multi-disc brakes in oil, with separate hydraulic drive on axles Parking brake system: oil-immersed multi-disc brakes with hydraulic release |
| MANIPULATOR | |
|---|---|
| Model | AMKODOR KF10080 |
| Manufacturer | AMKODOR (Belarus) |
| Manipulator boom reach, mm | 7950 |
| Lifting moment (gross), kNm | 100 |
| Carrying capacity at max. reach, kg | 850 |
| Coverage area, m2 | 0.3 |
| BLADE | |
|---|---|
| Bucket lip width, mm | 2350 |
| Lift height, mm | 1200 |
| CABIN | |
|---|---|
| Type | Integral, with hydraulic lift |
| ROPS/FOPS/OPS | Integrated |
| Air conditioning | Integrated |
| OVERALL AND WEIGHT SPECIFICATIONS | |
|---|---|
| Carrying capacity, kg | 15000 |
| Length in transport position, mm | 10800 |
| Width, mm | 2870 |
| Height, mm | 3800 |
| Track, mm | 2150 |
| Base, mm | 5750 |
| Clearance, mm | 540 |
| Cross-sectional area of cargo compartment, m2 | 4.0 |
| Cargo compartment length, mm | 4950 |
| Operating weight, kg | 21800 |
Forest machines Division
AMKODOR 2682-01
DESIGNATION
Forwarder AMKODOR 2682-01 is designed for collecting, loading and transporting assortments and other round timber along the territory of cutting areas, skid roads and logging roads, as well as for handling operations, sorting and storage when cut-to-length technology of timber harvesting.
AMKODOR Holding retains the right to change the technical characteristics and design of the machine presented in this prospectus without prior notice.
